| Manufacturer Part Number |

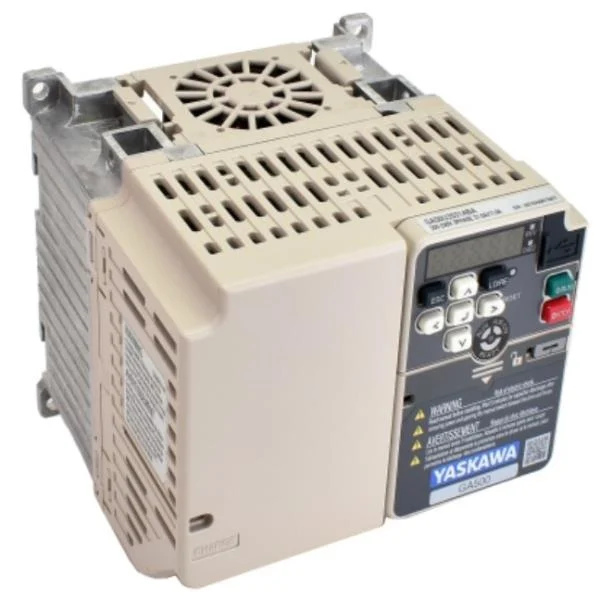

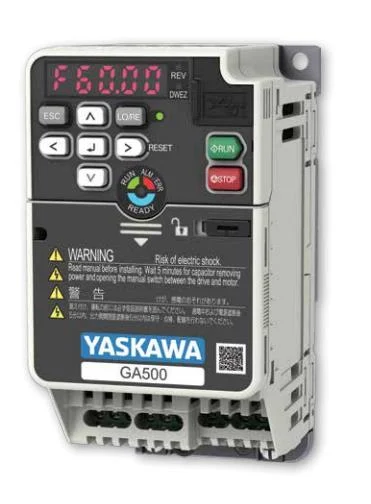

GA50U2010ABA |
| Manufacturer |
Yaskawa |
| Product Series |
GA500 |
| Family Series |
Yaskawa Drives, GA500 Series |
| Description |
Drive, AC, 2.0HP, 240V, 8.0A, CT, OP 240Vin 3PH 3.0HP 9.6A VT W/DB Trans 5.1in.Hx4.3in.Wx5.1in.D |
| Phase |
3 |
| HP (Constant Torque Rating) |
2 hp |
| HP (Variable Torque Rating) |
3 hp |
| Amps (Constant Torque Rating) |
8 A |
| Amps (Variable Torque Rating) |
9.6 A |
| Brake |
DC Injection, Dynamic Braking |
| Closed Loop |
No |
| AC Line Regenerative |
No |
| Operator Controls |
Keypad Included |
| Motor Control-Max Level |
Open Loop Vector (Sensorless Vector) |
| Mounting |
Panel |
| Nominal Input Voltage |
208 VAC, 240 VAC |
| AC Voltage |
200-240 VAC |
| Frequency |
590 Hz |
| Frame Size |
2.3 |
| Protection Rating |
IP20 |
| Dynamic Braking |
Included |
| Height |
5.04 “ |
| Width |
4.25 “ |
| Depth |
5.08 “ |
| Comments |
Side-By -Side Mounting, Includes Safe Torque Off, Setup Wizard For Easy Start-up, LED Status Ring |
| Net Weight |
4.51 lbs |
| Gross Weight |
6.3 lbs |
