20NCM-3-15-18 ELEKTRIM 15HP 1775 RPM FR# 254TC
$1,636.74
Elektrim Premium 20N Series TEFC IP55 1800RPM cast iron C-Face electric motor features a high 1.3 service factor, oversized ball bearings, VPI, VFD 10:1CT & 20:1VT and is rerateable for multiple voltages.
1 in stock (can be backordered)
| Product Group | Premium Efficient Motors | |
| Series | 20N Series | |
| Efficiency | Premium | |
| Phase | PH | 3 |
| Horsepower | HP | 15 |
| RPM | RPM | 1800 |
| Nominal RPM 60Hz | RPM | 1775 |

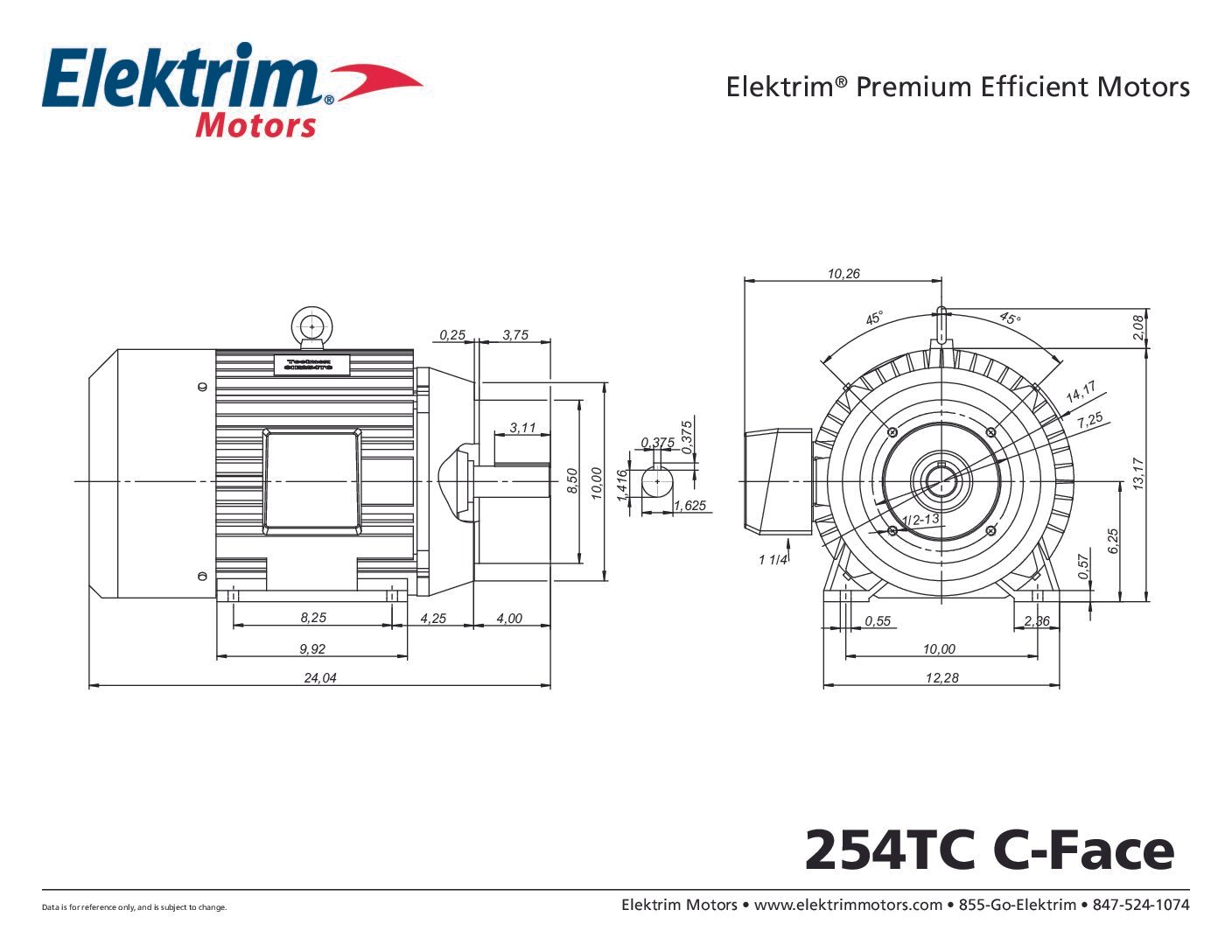

| Frame | 254TC | |
| Mount | Footed C-Face | |
| Removable / Rotatable / Double Drilled Feet | No / No / No | |
| Voltage | V | 208-230/460V 60Hz & 190/380V 50Hz |
| Hertz | Hz | 60 |
| Winding Connection | Double Delta / Delta | |
| Full Load Torque [FLT] 60Hz | lb-ft | 44.3 |
| Lock Rotor Torque [LRT] 60Hz | % | 380 |
| Break Down Torque [BDT] 60Hz | % | 440 |
| FLA [115V] / [208V] / [230V] / [460V] / [575V] / [796V] 60Hz | A | — / 38.3 / 34.6 / 17.3 / 13.8 / — |
| LRA % | % | 971 |
| Lock Rotor Amps [230V] / [460V] / [575V] / [796V] 60Hz | A | 336 / 168 / 134.4 / — |
| Efficiency at Full / 0.75 / 0.50 Load 60Hz | % | 92.4 / 92 / 90.7 |
| Power Factor Full / 0.75 / 0.50 Load 60Hz | % | 88 / 84 / 76 |
| RPM 50Hz | RPM | 1500 |
| Nominal RPM 50Hz | RPM | 1465 |
| FLA [190V] / [230V] / [380V] / [400V] 50Hz | A | 41.6 / — / 20.8 / — |
| Efficiency at Full / 0.75 / 0.50 Load 50Hz | % | 91.2 / — / — |
| FL Power Factor 50Hz | % | 89 |
| NEMA / IEC Design | A | |
| Code Letter | K | |
| Service Factor 60Hz / 50Hz | 1.3 / 1 | |
| Insulation Class | F | |
| Rotor WK2 | [lb-ft] / [kgm2] | 2.89 |
| DE Bearing / ODE Bearing | 6309 2Z / 6309 2Z | |
| Impregnation Method | Vacuum Pressure Impregnation (VPI) | |
| PTC Thermistors / Space Heater | Option / Option | |
| Junction Box / Fan Guard | Aluminum (Cast Iron Optional) / Rolled Steel | |
| Mounting Position / Protection Degree | F1 / IP55 | |
| Enclosure | TEFC | |
| Finish | RAL5010 | |
| Net Weight / Ship Weight | lb | 301 / 356 |
| Warranty | 3-Years |
