20MDM-3-5.5-36

$839.70

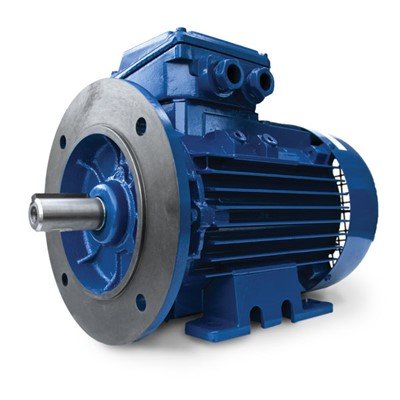

Elektrim Premium Efficiency Metric IEC electric motor, TEFC IP55 3600/3000RPM cast aluminum D-flange footed (B35) Design N, EFF=89%, oversized ball bearings, VPI for best electrical peformance, rated 60/50Hz equipped with terminal board standard.

1 in stock (can be backordered)

Categories: , , , , , , Tags: , , , , Brand:
Product Group Metric IEC
Series 20M Series
Efficiency Premium
Phase PH 3
Horsepower HP 5.5
RPM RPM 3600
Nominal RPM 60Hz RPM 3525

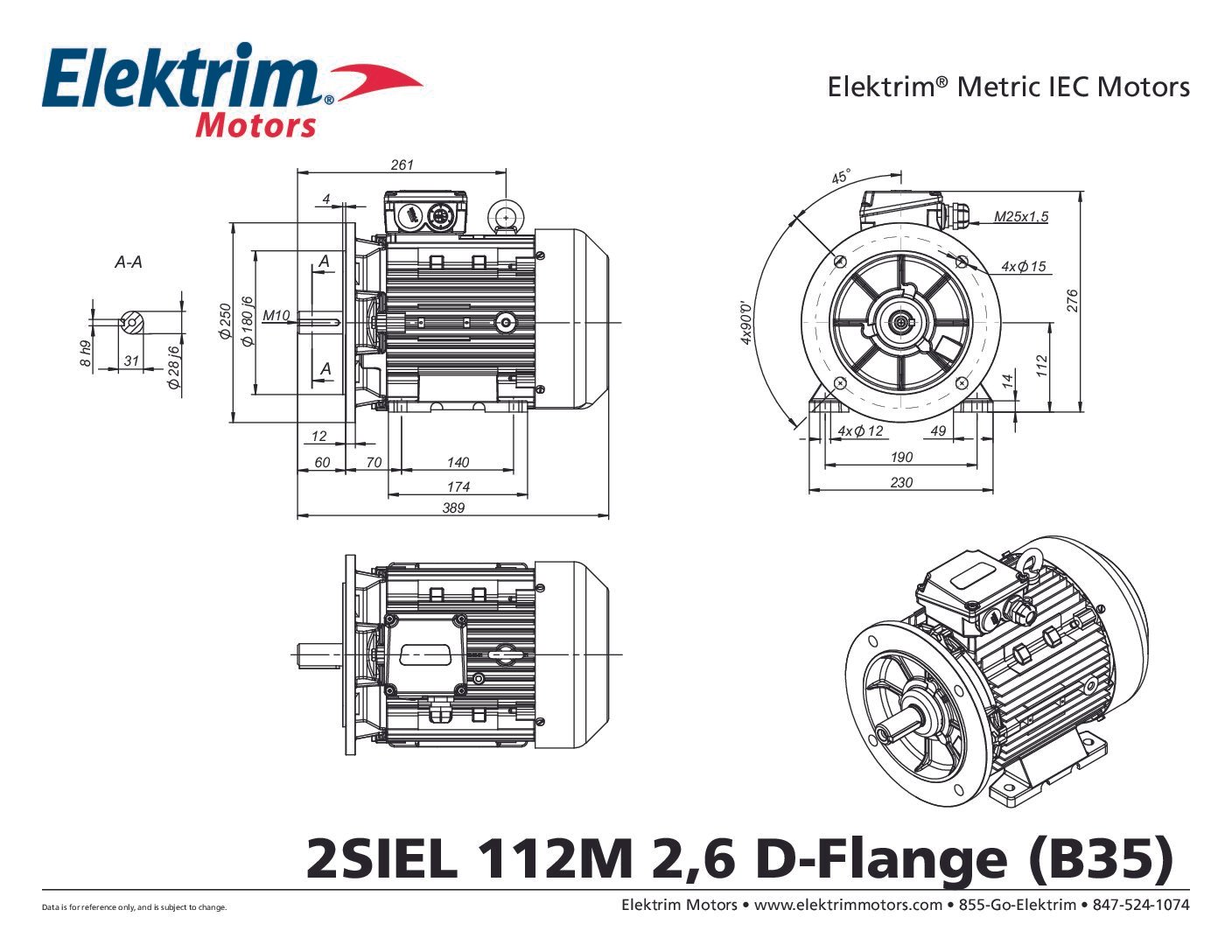

Frame 112M
Mount Footed D-Flange B35
Removable / Rotatable / Double Drilled Feet Yes / Yes / No
Voltage V 230/460V 60Hz & 230/380/400 50Hz
Hertz Hz 60

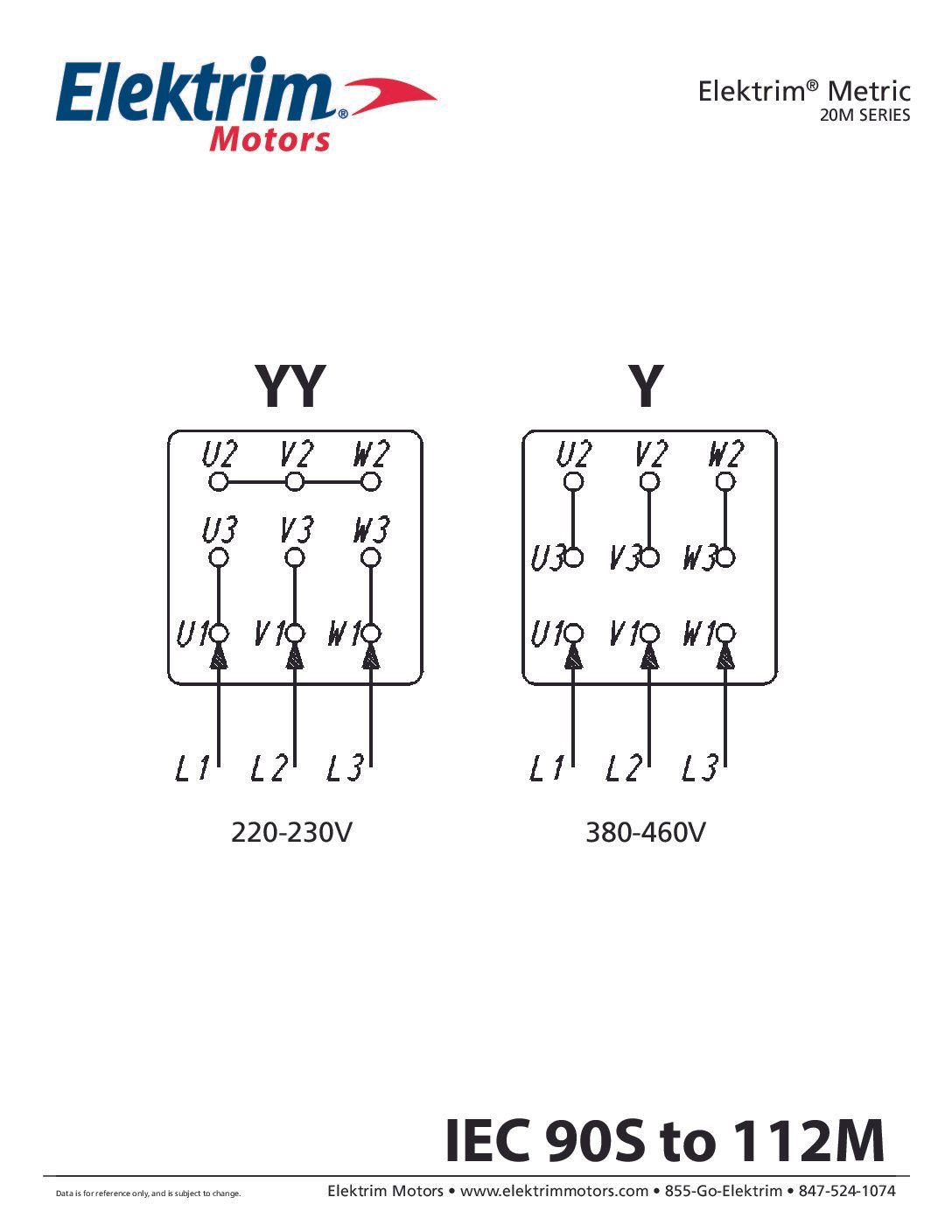

Winding Connection Double Wye / Wye
Full Load Torque [FLT] 60Hz lb-ft 8
Lock Rotor Torque [LRT] 60Hz % 260
Break Down Torque [BDT] 60Hz % 290
FLA [115V] / [208V] / [230V] / [460V] / [575V] / [796V] 60Hz A — / — / 13.2 / 6.6 / 5.3 / —
LRA % % 840
Lock Rotor Amps [230V] / [460V] / [575V] / [796V] 60Hz A — / — / — / —
Efficiency at Full / 0.75 / 0.50 Load 60Hz % 89 / 90 / 89.6
Power Factor Full / 0.75 / 0.50 Load 60Hz % 85 / — / —
kW 4
RPM 50Hz RPM 3000
Nominal RPM 50Hz RPM 2915
FLT 50Hz Nm 13.1000003814697
LRT 50Hz % 240
BDT 50Hz % 270
FLA [190V] / [230V] / [380V] / [400V] 50Hz A — / 13.4 / 8.1 / 7.7
LRA % 50Hz % 850
Efficiency at Full / 0.75 / 0.50 Load 50Hz % 86.3 / 87.3 / 86.9
FL Power Factor 50Hz % 87
NEMA / IEC Design N
Service Factor 60Hz / 50Hz 1.2 / 1
Insulation Class F
Rotor WK2 [lb-ft] / [kgm2] 0.15 / 0.006
DE Bearing / ODE Bearing 6306 ZZC3 / 6306 ZZC3
Impregnation Method Vacuum Pressure Impregnation (VPI)
PTC Thermistors / Space Heater Option / Option
Junction Box / Fan Guard Aluminum / Rolled Steel
Mounting Position / Protection Degree F3 / IP55
Enclosure TEFC
Finish RAL5010
Net Weight / Ship Weight lb 74 / 76
Warranty 3-Years
